Defining an Operation Record for a Source
After you create a source, you define an Operation record to implement the code.
To define an Operation record for a source:
1. In Max Designer, on the Developer Tools (
) launchpad menu, click Operations, and then in the list view, in the top left corner, click Create (
).

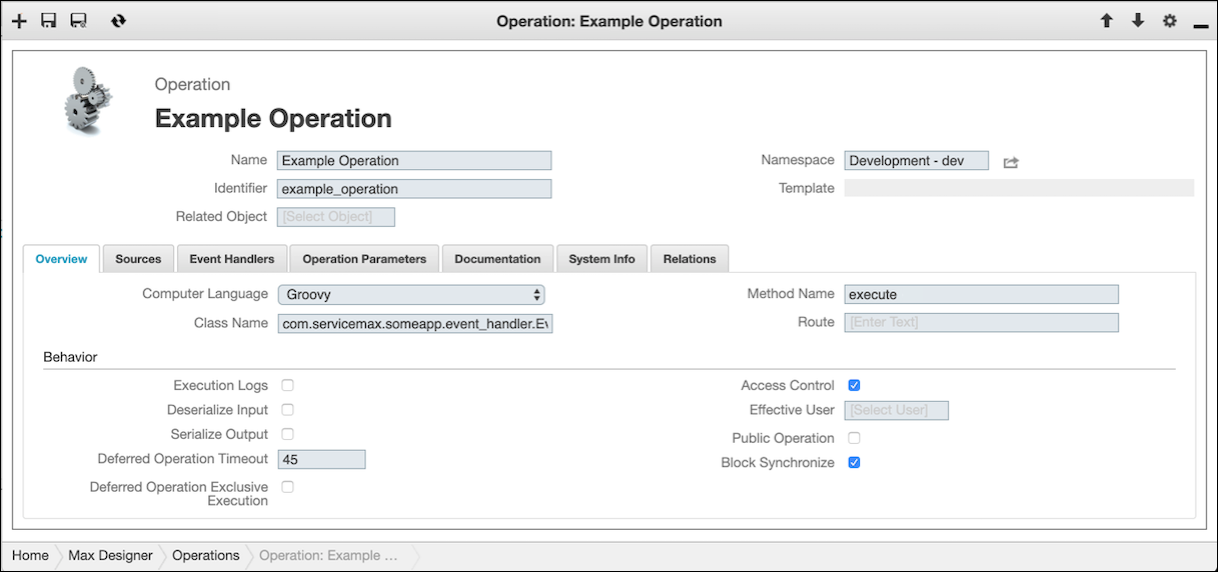

) launchpad menu, click Operations, and then in the list view, in the top left corner, click Create ().2. On the New Operation record page, complete the fields as follows, and then in the top left corner, click Save and Close (
).
).|
Field
|
Value
|
||
|---|---|---|---|
|
Name
|
Descriptive name for the operation.
|
||
|
Identifier
|
Auto-populated based on the operation name.
|
||
|
Computer Language
|
Groovy
|
||
|
Class Name
|
The fully qualified name of the newly created class in the format <source_package_name>.<class_name>, for example:
com.servicemax.myapp.event_handler.EventHandlerSubclass |
||
|
System Info Tab: Application field
|
The application for the operation.
|
||
|
Operation Parameters tab
|
The rest of the parameters for the operation.
|
3. On the Development Actions (
) launchpad menu, click Synchronize.
) launchpad menu, click Synchronize.For more information:
